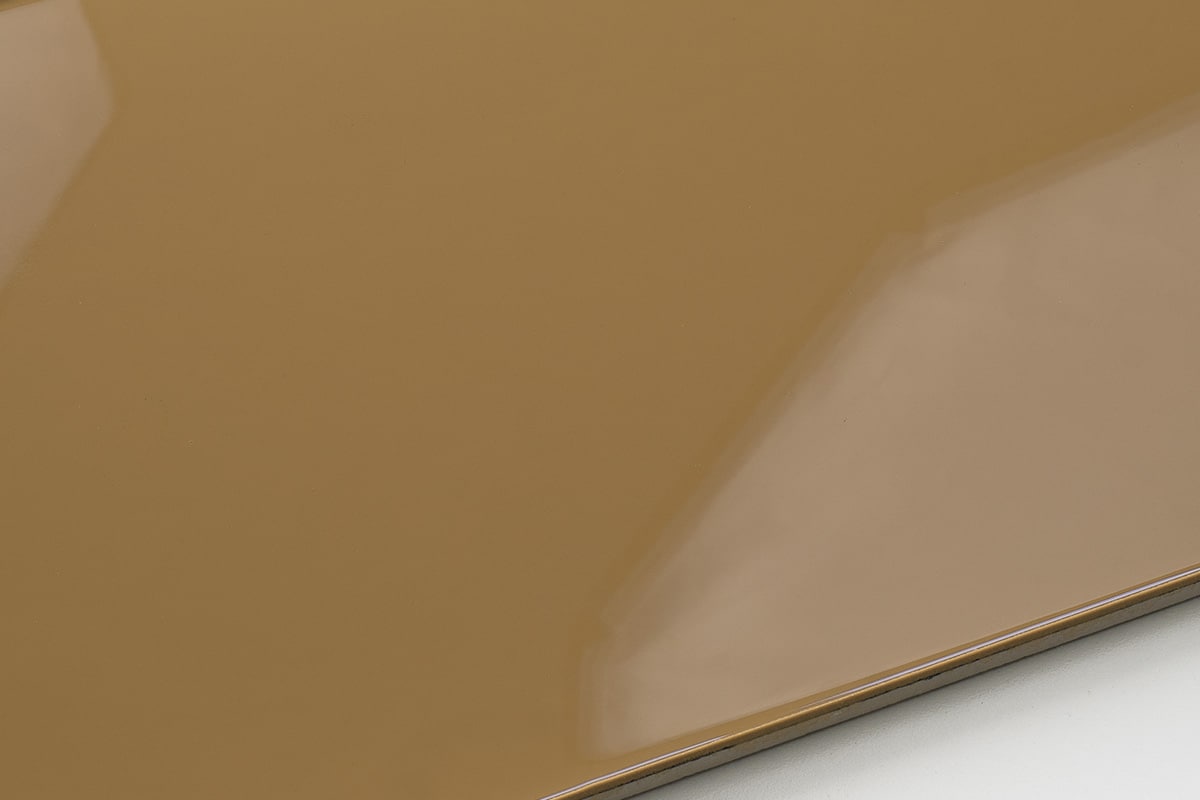

EPODEX epoxy resin in RAL 1011 Brown beige

EPODEX epoxy resin is ideal for coating floors and other surfaces. From industrial floors, through garage and basement floors, to designer flooring. No matter your project, we can help you achieve it. Our epoxy resin systems are miscible with all our colors. Application examples can be found in the gallery.

Instructions for use

Preparation

1. For application, we recommend a room, substrate and material temperature of approx. 20°C.
2. The surface should be dust-free, even and as watertight as possible. Unevenness and slopes should be levelled in advance with levelling compound.
3. Apply a saturating primer. (mandatory for porous surfaces and on the levelling compound)
4. The saturating primer prevents the epoxy resin and paint from being soaked into porous surfaces.
5. Allow the saturating primer to dry.

Primer

1. Always start with our SEALER & PRIMER epoxy resin primer. This primer is included in the scope of delivery.
2. Shake the resin A-component thoroughly before use and mix the resein A-component with the hardener B-component in a mixing ratio of 1:1 (e.g. 1kg resin: 1kg hardener). Mix the supplied colour paste RAL 7035 light grey or RAL 9003 signal white. It is possible to add min. 30% to max. 50% water to the resin-hardener mixture to dilute the material (this is recommended for large surfaces and/or elevated temperatures).
3. Stir through the edge and bottom of the mixing cup as material will settle there.
4. Pour the resin-hardener mixture onto the surface to be coated or into a paint tray immediately after mixing, as the mixture will thicken in mixing cup.
5. Roll the material thinly onto the desired surface with a foam roller. We recommend a layer thickness of approx. 0,2mm.
6. Let the primer dry and cure for approx. 20h. Continue with the main coating.

Main coating

1. Use our ECO or PRO system for the main coating.
2. Mix the resin A-component with the hardener B-component in a mixing ratio of 2:1 (e.g. 2kg resin: 1kg hardener). Add 1% of the supplied RAL 1011 Brown beige colour paste to the resin-hardener mixture.
3. Stir through the edge and bottom of the mixing cup as material will settle there. Ideally, pour into a clean mixing cup and mix again. This ensures that the resin A-component and hardener B-component are completely mixed together.
4. Pour the resin-hardener mixture onto the surface to be coated immediately after mixing, as the product may boil in the mixing cup depending on the system and the amount of substance.
5. Apply the material with a squeegee and foam roller and let it flood over the desired surface. We recommend a layer thickness of 1,5mm.
6. The main coating can be walked on/touched after approx. 24h and is chemically fully cured after approx. 7days. You can find more detailed information in our information table under the info button “Learn more” on this page.

Info: Epoxy resin is sensitive to any kind of moisture during curing (risk of carbamate formation, i.e. white patches in the top layer). For this reason, we recommend that you avoid any contact between water and the epoxy until it has cured completely (at least 7 days). For thin layers, cold temperatures (ambient, substrate, and resin temperatures below 20°C) and increased humidity, the time until the epoxy resin is fully cured may be extended.

Consumption volumes

Determine the required amount with the help of our epoxy resin “Epoxy calculator” on this page.
Recommended thicknesses when coating floors and other surfaces

• Overall coating (primer + main coating): approx. 1,9kg/sqm for layer thicknesses of 1,7mm
• Primer: approx. 0,2kg/sqm for layer thickness of 0,2mm
• Main layer: approx. 1,65kg/sqm for layer thicknesses of 1,5mm

Customer Service: If you have further questions, please contact us by phone, e-mail or use our WhatsApp support.
Note: Please note that due to different lighting conditions and monitors, the colours may not be uniformly displayed. All information is recommendations based on our experience; without legal obligation.

Ingredients

ECO (A-component) Attention: 2,2 ‘- [(1-methylethylidene) bis (4,1-phenyleneoxymethylene)] bisoxirane Reaction mass of 2,2’ – [methylenebis (4,1-phenyleneoxymethylene)] dioxirane and [ 2 – ({2- [4- (oxirane-2-ylmethoxy) benzyl] phenoxy} methyl) oxiranes and [2,2 ‘- [methylene bis (2,1-phenyleneoxymethylene)] dioxirane oxiranes, mono (C 12-14 alkyloxy) methyl) derivs.
PRO (A-component) Attention: reaction product: bis- [4- (2,3-epoxypropoxi) phenyl] propane oxirane, mono [(C12-14-alkyloxy) methyl] derivative
ECO (B-component) Danger: Reaction product: 3-aminomethyl-3,5,5-trimethylcyclohexylamine and 4,4′-isopropylidenediphenol, oligomeric reaction products with 1-chloro-2,3-epoxypropane m-phenylenebis (methylamine) salicylic acid.
PRO (B-component) Danger: Reaction product: 3-aminomethyl-3,5,5-trimethylcyclohexylamine.

Danger statements

A-component(ECO, PRO)Danger Causes skin irritation. Causes serious eye irritation. May cause an allergic skin reaction. Toxic to aquatic life with long lasting effects. Avoid breathing dust/fume/gas/mist/vapours/spray. Wear protective gloves/protective clothing/eye protection/face protection. Avoid release to the environment. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Dispose of contents and container in accordance with all local, regional, national or international regulations.
B-component (ECO, PRO) Danger: Harmful if inhaled, swallowed or in contact with skin. Causes severe skin burns and eye damage. May cause allergic skin reactions. Harmful / Toxic to aquatic life with long lasting effects. Avoid release to the environment. Do not breathe dust/fume/gas/mist/vapours/spray. Wear protective gloves/protective clothing/eye protection/face protection. IF ON SKIN (or hair): Remove/Take off immediately all contaminated clothing. Rinse skin with water/shower. IF INHALED: Remove person to fresh air and keep comfortable for breathing. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Immediately call a POISON CENTER or physician. IF SWALLOWED: Call a POISON CENTER or doctor/physician if you feel unwell. Dispose of contents and container in accordance with all local, regional, national or international regulations.
