ECO System (Epoxy Resin + Hardener)

ECO System (Epoxy Resin + Hardener)

Max. Pouring height 1cm. For GRP, floors, table tops, furniture and all coatings, repairs, and sealants.

5 out of 5 based on 6 customer ratings
(6 customer reviews)
Delivery time: 1-3 working days
  • Can be used on all surfaces such as concrete, screed, wood and more.
  • Max. Pouring height per operation: 1cm
  • Working time: approx. 60-120min, curing time: 16-24hrs.
  • Scope of delivery: Resin A and hardener B (mixing ratio 2:1)
  • Conveniently select a colour to colour the clear epoxy resin
  • Epoxy resin systems
    Legend:
    Ideally suited. X Not suited. ~ Not ideal, but can be used.
    ECO PRO ECO+
    PRO+
    ECO MAX
    PRO MAX
    Mixing Ratio by Weight Resin (A) : Hardener (B) 100:50 100:50 100:50 100:50
    Applications
    Coating ~ ~
    Laminating ~ ~
    Sealing ~ ~
    Pouring ~
    Repairing ~ ~
    Glueing ~ ~ ~
    Application Areas
    Priming, Coating and Sealing of Floors (Industrial Floors, Garages, Interior Floors, Bath etc.) X X
    Coating and Sealing of Tables, Countertops and Other Furniture/Objects ~ ~
    Sealing of Pictures X X
    Pouring of Tables (River-Tables) ~ ~
    Creation of Jewellery and Small Castings up to 2cm Height ~ ~
    Casting of large pieces in one pour X X
    Isolation of Electrical Circuits and Terminal Points X X X
    Use in Aircraft, Ship and Model Construction ~ ~
    Bonding and Sealing of Concrete, Wood, Plastic, Hard Foam, Natural Stone, Fibreglass and Other Materials ~ ~ ~
    Processing Characteristics
    Wood Turning
    Sandable
    Polishable
    Max. Pouring Height per Process11cm 2cm 5cm 10cm
    Waiting Time until Further Casting2 6h 12h 48-72h 72-96h
    Gelling Time and Pot Life 25min (100g) 65min (145g) 6h (10kg) 8h (10kg)
    Min. Processing Temperature 15°C 15°C 15°C 15°C
    Recommended processing temperature 20°C 20°C 20°C 20°C
    Max. Relative Humidity during Processing 70% 70% 70% 70%
    Max. Material Shrinkage 1% 1% 1% 1%
    Processing Time (at 20°C)
    At Layer Height 0-3mm 60min 120min 360min 480min
    At Layer Height 1cm 25min 90min 360min 480min
    At Layer Height 2cm X 60min 360min 480min
    At Layer Height 5cm X X 240min 360min
    At Layer Height 10cm X X X 360min
    Technical Properties
    Touchable / Accessible after 24h 24h 48-72h 96h
    Completely Chemically Cured after 7 days 7 days 14 days 14 days
    Transparent Resin
    Crystal Clear Curing X X (ECO+)
    (PRO+)
    X (ECO M)
    (PRO M)
    Max. Possible UV Stabilisation3 X X (ECO+)
    (PRO+)
    X (ECO M)
    (PRO M)
    Self-Venting
    Bubble Free
    Self-Leveling
    Solvent-Free
    VOC Free4 X X (ECO+)
    (PRO+)
    X (ECO M)
    (PRO M)
    BPA Free5
    Plasticiser Free (Phthalate)
    Resistant to Chemicals
    Scratch Resistant6
    Doming Effect (Depth Effect)
    Miscible with all EPODEX Colours (Except WB PIGMENT)
    Suitable for Underfloor Heating
    Suitable for Outdoor Use X X (ECO+)
    (PRO+)
    X (ECO M)
    (PRO M)
    High Adhesion
    Density (g/cm)3 1.1 1.1 1.1 1.1
    Viscosity (mPa·s) 700 530 350 350
    Max. Heat Deflection Temperature7 60°C 60°C 60°C 60°C
    Min. Heat Deflection Temperature -30°C -30°C -30°C -30°C
    SHORE Hardness after Curing (D1) 87 82 80 80
    Storage Temperature 10-30°C 15-30°C 15-30°C 15-30°C
    Shelf Life 12 Months 12 Months 12 Months 12 Months
    Shelf Life after Opening8 6 Months 6 Months 6 Months 6 Months
    1. Casting above the maximum pouring height per process is not recommended. The resin may boil as a result of the reaction and yellowing, cracking and deformation can occur. By reducing the temperature (room, substrate, material temperature to e.g. 15 °C and reducing the area to e.g. 15x15cm, casting heights of up to 50cm can be achieved in one casting process
    2. There is no maximum time limit to pour the next layer.
    3. No epoxy resin is completely UV stabilised. However, high-quality raw materials and additives such as UV absorbers can increase UV protection. By using a top coat, you can increase UV stabilisation even further. Possible top coats are e.g. transparent polyurethane (PU) resins or lacquers which are painted or sprayed onto the epoxy coating as a finish.
    4. When properly used and completely cured, it is VOC free..
    5. According to formula without free BPA.
    6. Our epoxy resin systems have a high scratch resistance, but are not completely scratch-resistant. Scratch resistance can be increased by using a top coat. Possible top coats are e.g. transparent polyurethane (PU) resins or lacquers which are painted or sprayed onto the epoxy coating as a finish.
    7. The heat deflection temperature indicates up to which temperature the cured epoxy resin system remains mechanically stable. At higher temperatures, the cured epoxy can soften. By annealing (curing at higher temperatures >60°C), the heat resistance can be increased.
    8. If the lid of the container is closed directly after opening, the shelf life after opening is at least 6 months.

Calculate quantity
Length (cm)
Width (cm)
Height (cm)
Required amount in KG KG
Required amount in g g
SKU: sys-eco Categories: ,

Universal application areas & perfect coating!

With our ECO system, you get an epoxy resin system at a top price in the usual EPODEX quality. Our epoxy resin is designed for every user. Start your project today - Ideal application areas for this epoxy resin system are GRP, floors, table tops, furniture, sealants, boat building, model making, mould making, terrarium/aquarium and general repairs.

100% safe epoxy resins

Play it safe with your health! EPODEX epoxy resins are non-toxic (according to GHS06) and not hazardous to health (according to GHS08) according to the hazardous substance legislation of the EU and Switzerland. Our high-quality epoxy resins are 100% solvent-free and, according to the formulation, do not contain any free bisphenol A (i.e., BPA-free), which is harmful to health. This guarantees pleasant processing.
epoxi epoxidharz

No. 1 coating resin with bubble-free curing

Our epoxy resins self-vent at room temperature. This means that any air bubbles created by mixing and pouring will disappear on their own before the epoxy cures. You do not need a heat gun to remove the bubbles. This means there is no risk of soot stains on your epoxy.
epoxidharz epodex beschichten blasenfrei 2
Equipment

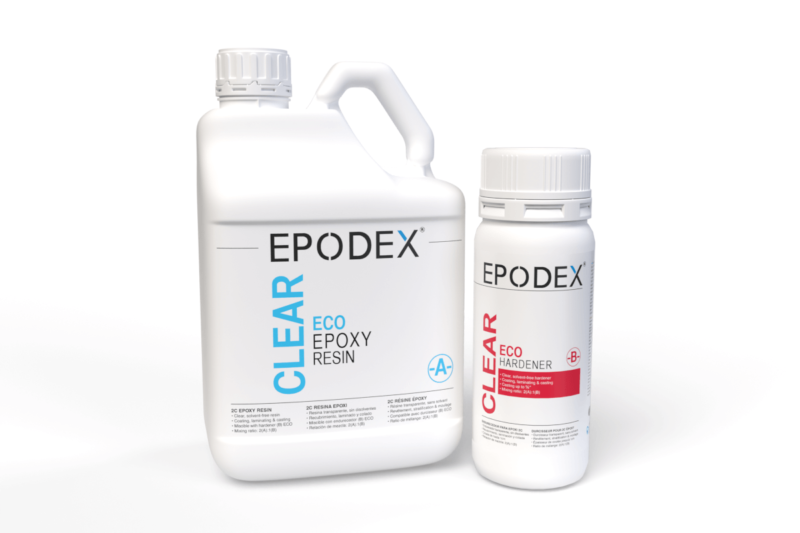

EPODEX – ECO System

The ECO system is suitable for a wide range of applications such as civil, electrical and mechanical engineering. It is a classic coating, laminating and repairing epoxy resin. It can be used as casting resin in layers up to 1cm thick. Coat your floors, table tops and other objects. Our EPODEX ECO system is miscible with all our colour pigments.


Instructions for use

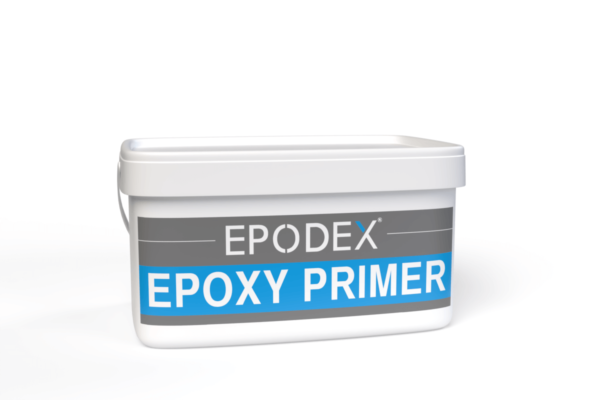

  1. Always start with an epoxy resin primer to avoid high material loss and blistering (layer thickness: 0,2-0,5mm). To do so, simply use a portion of the same clear epoxy resin (to prime floors and other coloured substrates we recommend using our water-based epoxy resin EPOXY PRIMER system).
  2. Mix the ECO resin A-component with the ECO hardener B-component in a ratio of 2:1 (e.g. 2kg resin: 1kg hardener).
  3. Stir through the edge and bottom of the mixing cup as the material will settle there. Ideally, pour into a clean mixing cup and mix again until the mixture is streak-free. This ensures that the resin A-component and hardener B-component are completely mixed together.
  4. Pour the resin-hardener mixture onto the surface to be coated immediately after mixing, as the product can start to boil in the mixing cup.
  5. Paint the epoxy primer with a paint roller or brush on the desired surface. We recommend rollers made of polyamide.
  6. Let the primer cure for about 20h.
  7. Continue with the main coating in the same way. We recommend a maximum casting height of 1cm per layer. Casting above 1cm can lead to overheating, yellowing, cracking and deformation of the material. To achieve a total thickness of more than 1cm, we recommend casting the next 1cm layer after about 6 hours.
  8. If you select a colour on this product page, you will receive dyes or colour pigments in addition to the resin and hardener.
  9. To colour the main coating, mix the supplied colour with the resin A-component or with the resin-hardener mixture. Adjust the colour intensity individually by adding more or less colour pigments.
  10. The epoxy resin can be touched and is accessible by foot after 20 hours and is chemically fully cured after about 7 days.
  11. You can find more detailed information in our information table under the “Learn more” button on this product page.

Consumption volumes

Determine the required amount of resin needed with the help of our epoxy resin “Epoxy calculator” on this product page.

Recommended thicknesses when coating floors and other surfaces

  • Overall coating (primer + main coating): approx. 1,65-2,20kg/sqm for layer thicknesses of 1,5-2mm
  • Primer: approx. 0,22-0,55kg/sqm for layer thickness of 0,2-0,5mm
  • Main layer: approx. 1,10-1,65kg/sqm for layer thicknesses of 1-1,5mm

Recommended amount of colouring agent per kg of resin+hardener:

  • Powder pigments (Metallic, Neon and Glow in the dark): 1,5% (15g),
  • Transparent dyes (except white, black and grey): 60 drops (1,8g),
  • Transparent white, black and grey dyes: 20 drops dye (0,6g),
  • Semi-transparent dyes (except white): 40 drops (1,2g) of the desired colour and 20 drops (0,6g) of white dye,
  • Semi-transparent white: 60 drops of white dye (1,8g),
  • RAL solid colour: 1% (10g),
  • Glitter pigments: 1% (10g)

Customer Service: If you have further questions, please contact us by phone, e-mail or use our WhatsApp support.

Note: Please note that due to different lighting conditions and monitors, the colours may not be uniformly displayed.


Ingredients, Security & Danger statements

A-Components (ECO) Warning: 2,2′-[(1-methylethylidene)bis(4,1-phenyleneoxymethylene)]bisoxirane Reaction mass of 2,2’-[methylenebis(4,1-phenyleneoxymethylene)]dioxirane and [2-({2-[4-(oxiran-2-ylmethoxy)benzyl]phenoxy}methyl)oxirane and [2,2’-[methylenebis(2,1-phenyleneoxymethylene)]dioxirane Oxirane, mono((C12-14-alkyloxy)methyl)derivs Causes skin irritation Causes serious eye irritation May cause an allergic skin reaction Toxic to aquatic life with long lasting effects Avoid breathing dust/fume/gas/mist/vapours/spray. Avoid release to the environment. Wear protective gloves/eye protection/face protection. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. If skin irritation or rash occurs: Get medical advice/attention. Dispose of contents/container to in accordance with local/regional/international regulations. Contains epoxy constituents. May produce an allergic reaction.

B-Components (ECO) Danger: Reaction products of 3-aminomethyl-3,5,5-trimethylcyclohexylamine and 4,4’-Isopropylidenediphenol, oligomeric reaction products with 1-chloro-2,3-epoxypropane m-phenylenebis(methylamine) Salicylic acid Causes severe skin burns and eye damage. May cause an allergic skin reaction Harmful to aquatic life with long lasting effects Do not breathe dust/fume/gas/mist/vapours/spray. Wear protective gloves/eye protection/face protection. IF ON SKIN (or hair): Take off immediately all contaminated clothing. Rinse skin with water [or shower]. IF INHALED: Remove person to fresh air and keep comfortable for breathing. Immediately call a POISON CENTER/doctor. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Specific treatment (see on this label). Take off contaminated clothing and wash it before reuse. Store locked up. Dispose of contents/container to in accordance with local/regional/international regulations.
