ECO+ System (Epoxy Resin + Hardener)

Home / Epoxy resin / Resin & Hardener / ECO+ System (Epoxy Resin + Hardener)
eco system resinhardener
gallery-image-zcHw
gallery-image-StFC
gallery-image-yVJZ
gallery-image-hYIw
gallery-image-8AxH
gallery-image-dAXY
gallery-image-lbbu

ECO+ System (Epoxy Resin + Hardener)

Max. Pouring height 5cm. For river tables, lamps, clocks, decorations and other moulded and cast parts.

from £ 15.99 inc. VAT

Delivery time: 1-3 working days

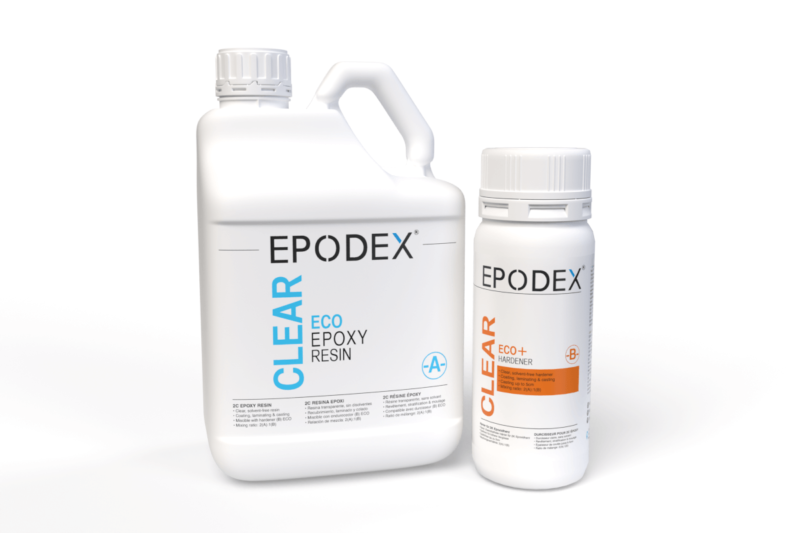

The ECO+ epoxy resin system is suitable for making river tables as well as large moulded and cast parts. It can be used as casting resin in layers up to 5cm thick. When working on a small area at a low room temperature (for example, 10x10cm at 15°C), it can also be poured up to 30cm thick at once. Alternatively, it is also possible to pour several layers. Unlike our PRO+ System, The ECO+ System isn’t crystal clear nor UV-stabilised. It is therefore recommended to use it in combination with our dark pigments and dyes.
The resin A-component and hardener B-component are included in each set. Depending on the colour selected, you will also receive dyes or colour pigments to tint the epoxy resin. Instructions for use can be found on this product page.

    • 0 £

    Epoxy resin systems
    Legend:
    ✓ Ideally suited. X Not suited. ~ Not ideal, but can be used.
    ECO PRO ECO+
    PRO+
    ECO MAX
    PRO MAX
    Mixing Ratio by Weight Resin (A) : Hardener (B) 100:50 100:50 100:50 100:50
    Applications
    Coating ✓ ✓ ~ ~
    Laminating ✓ ✓ ~ ~
    Sealing ✓ ✓ ~ ~
    Pouring ~ ✓ ✓ ✓
    Repairing ✓ ✓ ~ ~
    Glueing ✓ ~ ~ ~
    Application Areas
    Priming, Coating and Sealing of Floors (Industrial Floors, Garages, Interior Floors, Bath etc.) ✓ ✓ X X
    Coating and Sealing of Tables, Countertops and Other Furniture/Objects ✓ ✓ ~ ~
    Sealing of Pictures ✓ ✓ X X
    Pouring of Tables (River-Tables) ~ ~ ✓ ✓
    Creation of Jewellery and Small Castings up to 2cm Height ✓ ✓ ~ ~
    Casting of large pieces in one pour X X ✓ ✓
    Isolation of Electrical Circuits and Terminal Points ✓ X X X
    Use in Aircraft, Ship and Model Construction ✓ ✓ ~ ~
    Bonding and Sealing of Concrete, Wood, Plastic, Hard Foam, Natural Stone, Fibreglass and Other Materials ✓ ~ ~ ~
    Processing Characteristics
    Wood Turning ✓ ✓ ✓ ✓
    Sandable ✓ ✓ ✓ ✓
    Polishable ✓ ✓ ✓ ✓
    Max. Pouring Height per Process at 20°C1 (Number of Pourings: Unlimited)1cm 2cm 5cm 10cm
    Waiting Time until Further Casting at 20°C2 (Number of Pourings: Unlimited) Min. 6h Min. 12h Min. 48-72h Min. 72-96h
    Gelling Time and Pot Life at 20°C (Gel Timer TECAM) 25min (100g) 65min (145g) 6h (10kg) 8h (10kg)
    Min. Processing Temperature +15°C +15°C +15°C +15°C
    Max. Processing Temperature at Max. Casting Height +20°C (1cm) +20°C (2cm) +20°C (5cm) +20°C (10cm)
    Max. Processing Temperature at 1mm Coating Height +35°C +35°C +35°C +35°C
    Max. Relative Humidity during Processing 70% 70% 70% 70%
    Max. Material Shrinkage after Processing 1% 1% 1% 1%
    Processing Time (at 20°C)
    At Layer Height 0-3mm 60min 120min 360min 480min
    At Layer Height 1cm 25min 90min 360min 480min
    At Layer Height 2cm X 60min 360min 480min
    At Layer Height 5cm X X 240min 360min
    At Layer Height 10cm X X X 360min
    Touchable / Accessible on Foot / Demoldable (at 20°C)
    At Layer Height 0-3mm after 20h after 24h after 48-72h after 72-96h
    At Layer Height 1cm after 20h. after 20h. after 48-72h after 72-96h
    At Layer Height 2cm X after 20h after 48-72h after 72-96h
    At Layer Height 5cm X X after 48-72h after 72-96h
    At Layer Height 10cm X X X after 96h
    Completely Chemically Cured after 7 days after 7 days after 14 days after 14 days
    Technical Properties
    Transparent Resin ✓ ✓ ✓ ✓
    Crystal Clear Curing X ✓ X (ECO+)
    ✓ (PRO+)
    X (ECO M)
    ✓ (PRO M)
    Max. Possible UV Stabilisation3 X ✓ X (ECO+)
    ✓ (PRO+)
    X (ECO M)
    ✓ (PRO M)
    Self-Venting ✓ ✓ ✓ ✓
    Bubble Free ✓ ✓ ✓ ✓
    Self-Leveling ✓ ✓ ✓ ✓
    Solvent-Free ✓ ✓ ✓ ✓
    VOC Free4 X ✓ X (ECO+)
    ✓ (PRO+)
    X (ECO M)
    ✓ (PRO M)
    BPA Free5 ✓ ✓ ✓ ✓
    Plasticiser Free (Phthalate) ✓ ✓ ✓ ✓
    Resistant to Chemicals ✓ ✓ ✓ ✓
    Scratch Resistant6 ✓ ✓ ✓ ✓
    Doming Effect (Depth Effect) ✓ ✓ ✓ ✓
    Miscible with all EPODEX Colours (Except WB PIGMENT) ✓ ✓ ✓ ✓
    Suitable for Underfloor Heating ✓ ✓ ✓ ✓
    Suitable for Outdoor Use X ✓ X (ECO+)
    ✓ (PRO+)
    X (ECO M)
    ✓ (PRO M)
    High Adhesion ✓ ✓ ✓ ✓
    Density (g/cm)3 1.1 1.1 1.1 1.1
    Viscosity (mPa·s) 700 530 350 350
    Max. Heat Deflection Temperature7 65°C 65°C 65°C 65°C
    Min. Heat Deflection Temperature -30°C -30°C -30°C -30°C
    SHORE Hardness after Curing (D1) 87 82 80 80
    Storage Temperature 10-30°C 15-30°C 15-30°C 15-30°C
    Shelf Life 12 Months 12 Months 12 Months 12 Months
    Shelf Life after Opening8 6 Months 6 Months 6 Months 6 Months
    1. Casting above the maximum pouring height per process is not recommended. The resin may boil as a result of the reaction and yellowing, cracking and deformation can occur. By reducing the temperature (room, substrate, material temperature to e.g. 15 °C and reducing the area to e.g. 15x15cm, casting heights of up to 50cm can be achieved in one casting process
    2. There is no maximum time limit to pour the next layer.
    3. No epoxy resin is completely UV stabilised. However, high-quality raw materials and additives such as UV absorbers can increase UV protection. By using a top coat, you can increase UV stabilisation even further. Possible top coats are e.g. transparent polyurethane (PU) resins or lacquers which are painted or sprayed onto the epoxy coating as a finish.
    4. When properly used and completely cured, it is VOC free..
    5. According to formula without free BPA.
    6. Our epoxy resin systems have a high scratch resistance, but are not completely scratch-resistant. Scratch resistance can be increased by using a top coat. Possible top coats are e.g. transparent polyurethane (PU) resins or lacquers which are painted or sprayed onto the epoxy coating as a finish.
    7. The heat deflection temperature indicates up to which temperature the cured epoxy resin system remains mechanically stable. At higher temperatures, the cured epoxy can soften. By annealing (curing at higher temperatures >60°C), the heat resistance can be increased.
    8. If the lid of the container is closed directly after opening, the shelf life after opening is at least 6 months.

    • 15.99 £
    • 18.99 £
    • 20.99 £
Calculate quantity
Length (cm)
Width (cm)
Height (cm)
Required amount in KG KG
Required amount in g g
Calculate quantity
Equipment
SKU: sys-ecoplus Category: Resin & Hardener
Equipment

EPODEX – ECO+ System

The ECO+ epoxy resin system is our low-cost casting resin system that was especially developed for the making of coloured river tables and other objects. This system can be mixed with all our epoxy resin dyes and pigments.


Instructions for use

  1. Always start with an epoxy resin primer to avoid high material loss and blistering (layer thickness: 0,2-0,5mm). To do so, simply use a portion of the same clear epoxy resin. As an alternative, you can also use our ECO system for the primer. The ECO system has the advantage to be designed for thinner layers and cures within 16-24hours.
  2. Mix the ECO resin A-component with the ECO+ hardener B-component in a ratio of 2:1 (e.g. 2kg resin: 1kg hardener).
  3. Stir through the edge and bottom of the mixing cup as material will settle there. Ideally, pour into a clean mixing cup and mix again until the mixture is streak-free. This ensures that the resin A-component and hardener B-component are completely mixed together.
  4. Paint the epoxy primer with a paint roller or brush on the desired surface. We recommend rollers made of polyamide.
  5. Let the primer cure. The curing time varies depending on the temperature and layer thickness. . Please refer to our information table under the “Learn more” button, which can be find on this product page.
  6. Continue with the main coating in the same way. Pour the resin-hardener mixture up to 5cm deep. If the area to be poured is small (e.g. 10x10cm) and the room temperature is low (15°C), you can pour up to 30cm deep at once.
  7. If you select a colour on this product page, you will receive dyes or colour pigments in addition to the resin and hardener.
  8. To colour the main coating, mix the supplied colour with the resin A-component or with resin-hardener mixture. Adjust the colour intensity individually by adding more or less colour pigments.
  9. The epoxy resin can be touched and is accessible by foot after 72hours and is chemically fully cured after about 7-14 days.
  10. You can find more detailed information in our information table under the “Learn more” button on this product page.

Consumption volumes

Determine the required amount of resin needed with the help of our epoxy resin “Epoxy calculator” on this product page.

Recommended amount of colouring agent per kg of resin+hardener:

  • Powder pigments (Metallic, Neon und Glow in the dark): 1,5% (15g),
  • Transparent dyes (except white and grey): 60 drops (1,8g),
  • Transparent white and grey dyes: 20 drops dye (0,6g),
  • Semi-transparent dyes (except white): 40 drops (1,2g) of the desired colour und 20 drops (0,6g) of white dye,
  • Semi-transparent white: 60 drops of white dye (1,8g),
  • RAL solid colour: 1% (10g),
  • Glitter pigments: 1% (10g)

Customer Service: If you have further questions, please contact us by phone, e-mail or use our WhatsApp support.

Note: Please note that due to different lighting conditions and monitors, the colours may not be uniformly displayed.


Ingredients

A-component Attention: 2,2 ‘- [(1-methylethylidene) bis (4,1-phenyleneoxymethylene)] bisoxirane Reaction mass of 2,2’ – [methylenebis (4,1-phenyleneoxymethylene)] dioxirane and [ 2 – ({2- [4- (oxirane-2-ylmethoxy) benzyl] phenoxy} methyl) oxiranes and [2,2 ‘- [methylene bis (2,1-phenyleneoxymethylene)] dioxirane oxiranes, mono (C 12-14 alkyloxy) methyl) derivs.

B-component Danger: Reaction product: polyoxyalkyleneamine.


Danger statements

A-componentDanger Causes skin irritation. Causes serious eye irritation. May cause an allergic skin reaction. Toxic to aquatic life with long lasting effects. Avoid breathing dust/fume/gas/mist/vapours/spray. Wear protective gloves/protective clothing/eye protection/face protection. Avoid release to the environment. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Dispose of contents and container in accordance with all local, regional, national or international regulations.

B-component Danger: Harmful if inhaled, swallowed or in contact with skin. Causes severe skin burns and eye damage. May cause allergic skin reactions. Harmful / Toxic to aquatic life with long lasting effects. Avoid release to the environment. Do not breathe dust/fume/gas/mist/vapours/spray. Wear protective gloves/protective clothing/eye protection/face protection. IF ON SKIN (or hair): Remove/Take off immediately all contaminated clothing. Rinse skin with water/shower. IF INHALED: Remove person to fresh air and keep comfortable for breathing. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Immediately call a POISON CENTER or physician. IF SWALLOWED: Call a POISON CENTER or doctor/physician if you feel unwell. Dispose of contents and container in accordance with all local, regional, national or international regulations.
