Epoxy Resin Alcohol Inks

Epoxy Resin Alcohol Inks

Delivery time: 1-3 working days

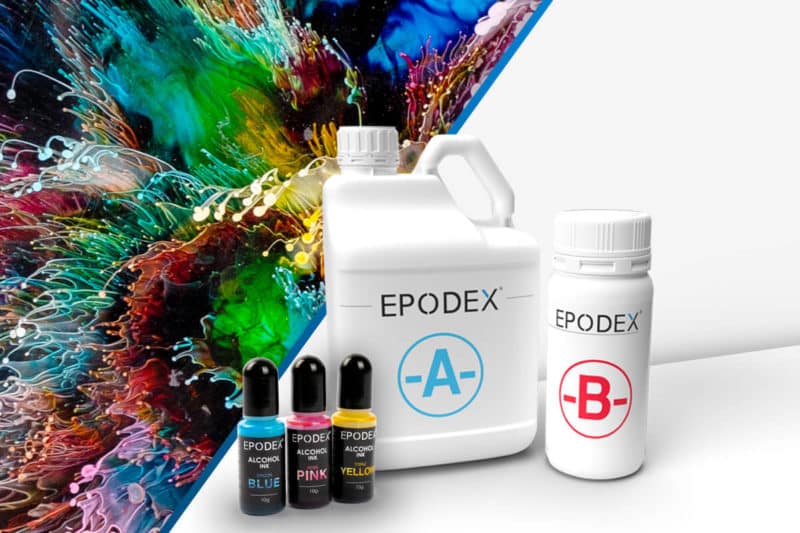

EPODEX epoxy resins are suitable for all applications. The scope of delivery includes resin (A) and hardener (B) as well as one or more 10g vials of Alcohol Inks, depending on the selection. Choose between our two-epoxy resin systems ECO and PRO. Then determine the desired amount of epoxy resin and alcohol ink. For the typical Alcohol Ink effect, you can optionally order white dye. The more white dye used, the stronger the effect. You will find application instructions on this product page.

  • Epoxy resin systems
    Ideally suited. X Not suited. ~ Not ideal, but can be used.
    ECO System PRO System
    Mixing ratio by weight Resin (A): Hardener (B) 100:50 100:50
    Applications
    Coating
    Laminating
    Sealing
    Pouring ~
    Repairing
    Glueing ~
    Application areas (e.g.)
    Priming, coating and sealing of floors (industrial floors, garages, interior floors, bath etc.)
    Coating and sealing of tables, countertops and other furnitures/objects
    Sealing of picture
    Pouring of tables ("River Tables") ~ ~
    Creation of jewelry and small castings up to 2cm height
    Casting of large pieces in one pour X X
    Isolation of Electrical circuits and terminal points X
    Use in aircraft, ship and model construction
    Bonding and sealing of concrete, wood, plastic, hard foam, natural stone, fiberglass and other materials ~
    Processing caracteristics
    Wood training
    Sandable
    Polishable
    Max. Pouring height per process1 1cm 2cm
    Waiting time until further casting2 6h 12h
    Gelling time and pot life for 100g 25min. 65min.
    Min. processing temperature 15°C 15°C
    Recommended processing temperature 20°C 20°C
    Max. relative humidity during processing 70% 70%
    Max. material shrinkage 1% 1%
    Processing time (at 20°C)
    At layer height 0-3mm 60min. 120min.
    At layer height 1cm 25min. 90min.
    At layer height 2cm X 60min.
    At layer height 5cm X X
    Technical properties
    Touchable / Accessible after 24h 24h
    Completely chemical cured after 7 days 7 days
    Transparent resin
    Crystal clear curing X
    Max. possible UV protection3 X
    Self-venting
    Bubble free
    Self-leveling
    Solvent-free
    VOC free4 X
    BPA free5
    Plasticizer free (Phthalate)
    Resistant to chemicals
    Scratch resistant6
    Doming effect (depth effect)
    Miscible with all EPODEX colors (except WB PIGMENT)
    Suitable for underfloor heating
    Suitable for outdoor use X
    High adhesion
    Density (g/cm3) 1.1 1.1
    Viscosity (mPa·s) 700 530
    Max. heat deflection temperature7 60°C 60°C
    Min. heat deflection temperature -30°C -30°C
    SHORE hardness after curing (D1) 87 82
    Storage temperature 10-30°C 15-30°C
    Shelf life 12 months 12 months
    Shelf life after opening8 6 months 6 months
    1. Casting above the maximum pouring height per process is not recommended. The resin may boil as a result of the reaction and yellowing, cracking and deformation can occur. By reducing the temperature (room, substrate, material temperature to e.g. 15 °C and reducing the area to e.g. 10x10cm, casting heights of up to 30cm can be achieved in one casting process.
    2. There is no maximum time limit to pour the next layer.
    3. No epoxy resin is completely UV resistant. However, high-quality raw materials and additives such as UV absorbers can increase UV protection. By using a topcoat, you can increase UV resistance even further. Possible topcoats are e.g. transparent polyurethane (PU) resins or lacquers which are painted or sprayed onto the epoxy coating as a finish.
    4. When properly used and completely cured, it is VOC free.
    5. According to formula without free BPA.
    6. Our epoxy resin systems have a high scratch resistance, but are not completely scratch-resistant. Scratch resistance can be increased by using a topcoat. Possible topcoats are e.g. transparent polyurethane (PU) resins or lacquers which are painted or sprayed onto the epoxy coating as a finish.
    7. The heat deflection temperature indicates up to which temperature the cured epoxy resin system remains mechanically stable. At higher temperatures, the cured epoxy can soften. By annealing (curing at higher temperatures >60°C), the heat resistance can be increased.
    8. If the lid of the container is closed directly after opening, the shelf life after opening is at least 6 months.

Calculate quantity
Length (cm)
Width (cm)
Height (cm)
Required amount in KG KG
Required amount in g g
SKU: sys-harz-inks Categories: ,
Equipment

EPODEX Epoxy Resin Alcohol Inks

EPODEX Alcohol Inks are transparent and fast-drying alcohol-based ink colours specifically designed for fluid painting techniques. Create individual colour gradients, abstract effects, and surprising shapes with EPODEX Alcohol Inks.
The ink can be used on almost all smooth, non-porous materials. Epoxy resins, synthetic papers (e.g. Yupo paper), glass, metal, ceramics, porcelain, stone or modeling clay are best suited. After drying, the acid-free Alcohol Inks are smudge-proof and waterproof.


Application on epoxy resins

  1. Mix epoxy resin and hardener in the specified mixing ratio.
  2. Pour the resin-hardener mixture onto the desired surface or into the desired mould. For the typical Alcohol Ink effect (“Petri-Art effect“) we recommend a maximum pouring height of 1.5cm.
  3. Add the coloured alcohol ink of your choice to the still liquid the resin-hardener mixture and then add the alcohol ink SELENIT WHITE. The inks will react with each other creating a unique pattern. The more white ink drops you add to the coloured ink drop, the more pronounced and deeper the effect will be.
  4. To achieve a full-surface result, you can, for example, place several coloured drops next to each other and alternate them with white drops to create a pattern. The more white drops you put on the coloured drop, the deeper the colours sink into the resin and the stronger the Alcohol Ink effect is.
  5. Work with different coloured paints for a multicoloured result.

Info: Epoxy resin is sensitive to any kind of moisture during curing (risk of carbamate formation, i.e. white patches in the top layer). For this reason, we recommend that you avoid any contact between water and the epoxy until it has cured completely (at least 7 days). For thin layers, cold temperatures (ambient, substrate, and resin temperatures below 20°C) and increased humidity, the time until the epoxy resin is fully cured may be extended.


Consumption volumes

Determine the required amount with the help of our epoxy resin “Epoxy calculator” on this page.
Recommended thicknesses when coating floors and other surfaces

  • Overall coating (primer + main coating): approx. 1,65-2,20kg/sqm for layer thicknesses of 1,5-2mm
  • Primer: approx. 0,22-0,55kg/sqm for layer thickness of 0,2-0,5mm
  • Main layer: approx. 1,10-1,65kg/sqm for layer thicknesses of 1-1,5mm

Customer Service: If you have further questions, please contact us by phone, e-mail or use our WhatsApp support.
Note: Please note that due to different lighting conditions and monitors, the colours may not be uniformly displayed.


Ingredients, Security & Danger statements

A-Components (ECO) Warning: 2,2′-[(1-methylethylidene)bis(4,1-phenyleneoxymethylene)]bisoxirane Reaction mass of 2,2’-[methylenebis(4,1-phenyleneoxymethylene)]dioxirane and [2-({2-[4-(oxiran-2-ylmethoxy)benzyl]phenoxy}methyl)oxirane and [2,2’-[methylenebis(2,1-phenyleneoxymethylene)]dioxirane Oxirane, mono((C12-14-alkyloxy)methyl)derivs Causes skin irritation Causes serious eye irritation May cause an allergic skin reaction Toxic to aquatic life with long lasting effects Avoid breathing dust/fume/gas/mist/vapours/spray. Avoid release to the environment. Wear protective gloves/eye protection/face protection. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. If skin irritation or rash occurs: Get medical advice/attention. Dispose of contents/container to in accordance with local/regional/international regulations. Contains epoxy constituents. May produce an allergic reaction.

B-Components (ECO) Danger: Reaction products of 3-aminomethyl-3,5,5-trimethylcyclohexylamine and 4,4’-Isopropylidenediphenol, oligomeric reaction products with 1-chloro-2,3-epoxypropane m-phenylenebis(methylamine) Salicylic acid Causes severe skin burns and eye damage. May cause an allergic skin reaction Harmful to aquatic life with long lasting effects Do not breathe dust/fume/gas/mist/vapours/spray. Wear protective gloves/eye protection/face protection. IF ON SKIN (or hair): Take off immediately all contaminated clothing. Rinse skin with water [or shower]. IF INHALED: Remove person to fresh air and keep comfortable for breathing. Immediately call a POISON CENTER/doctor. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Specific treatment (see on this label). Take off contaminated clothing and wash it before reuse. Store locked up. Dispose of contents/container to in accordance with local/regional/international regulations.

A-Components (PRO) Warning: Bis-[4-(2,3-epoxipropoxi)phenyl]propane Oxirane, mono[(C12-14-alkyloxy)methyl] derivative Pentamethyl piperidyl sebazate Causes skin irritation May cause an allergic skin reaction Causes serious eye irritation Toxic to aquatic life with long lasting effects Avoid breathing dust/fume/gas/mist/vapours/spray. Wash skin thoroughly after handling. Avoid release to the environment. Wear protective gloves/eye protection/face protection. If skin irritation or rash occurs: Get medical advice/attention. Collect spillage.

B-Components (PRO) Danger: Polyoxypropylene triamine 3-aminomethyl-3,5,5-trimethylcyclohexylamine adduct IA (epoxy-amine adduct) Harmful if swallowed Causes severe skin burns and eye damage. May cause an allergic skin reaction Toxic to aquatic life with long lasting effects Avoid release to the environment. Wear protective gloves/protective clothing/eye protection/face protection. IF ON SKIN (or hair): Take off immediately all contaminated clothing. Rinse skin with water. IF INHALED: Remove person to fresh air and keep comfortable for breathing. Immediately call a POISON CENTER/doctor. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Immediately call a POISON CENTER/doctor. Collect spillage.
